DL9062

17th Edition Earth Resistance Tester

DL9062

DL9062

Earth Resistance Tester

The DL9062 Digital Earth Resistance Tester is direct replacement of the conventional hand generator type tester. It is designed for measurement of the resistance of earthing used in the electrical equipment as well as for measurement of ground resistibility. It can be used for measurements of the other low regular and liquid resistances. It can also be used for measurement of voltage AC, voltage DC and resistance.

This instrument finds wide application for testing earthing installation in power based industries, telecommunication networks and electrical traction systems etc.

Features

  • Meets IEC1010-1, CAT III 1000V
  • Kit includes 4 x Cables and 2 x Rods
  • Large digital display with backlight
  • Test hold function for easy opperation
  • Zero Automatic adjustment
  • Sampling Rate: 2.2 times per second
  • Easy to carry testing package
  • Over range indication
  • Low battery indication

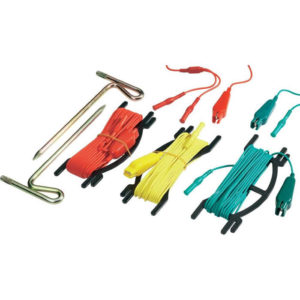

DL9062KitImage2

Unit supplied with the above ERT Kit

Specifications

MeasurementRangeAccuracy
Display3½ digit LCD 1999 digits
Earth Resistance20Ω (0.01Ω Resolution)
200Ω (0.1Ω Resolution)
2000Ω (1Ω Resolution)
+/- 2% Rdg +/- 10 digits
+/- 2% Rdg +/- 3 digits
+/- 2% Rdg +/- 3 digits
Earth Voltage200V (0.1V Resolution)+/- 3% + 3 digits
Voltage AC750V (1V Resolution)+/- 1.2% +/- 10 digits
Voltage DC1000V (1V Resolution)+/- 0.8% +/- 3 digits
Resistance200kΩ+/- 1.0% +/- 3 digits
Over voltage categoryCAT III 1000 V
Power supply6 x 1.5 V, IEC LR
Dimensions200 x 92 x 50 mm
Weight582 g
