Apollo 400

Dual Voltage Downloadable PAT Tester with memory for 2000 assets

Apollo 400

Apollo 400

Manual PAT Testers with Data Logger

Apollo 400 Dual Voltage Downloadable PAT Tester with memory for 2000 assets

Apollo 400 revolutionises safety management.

Apollo 400 offers fast electrical safety testing with straightforward data entry using the intuitive QWERTY keypad.

A comprehensive range of electrical safety tests ensure compliance with the IET 4th Edition Code of Practice, whilst remote data transfer and USB download makes data management easy and efficient.

The Apollo 400 is ideal for mid-volume PAT testing where speed is of the essence, and detailed records are required.

Streamline the PAT testing process further by using the Apollo 400 with a compatible label printer, barcode scanner and PATGuard 3 software.

Key Features

  • High definition colour display
  • Store 2,000 appliance records
  • Bluetooth and USB connectivity

Electrical Test Functions

  • Low current earth continuity test guaranteeing accurate measurement
  • Insulation resistance
  • IEC lead test
  • Protective conductor current
  • Touch current
  • Load power/current
  • Alternative leakage current
  • Point to point testing for fixed appliances
  • RCD test
  • Power socket test

Apollo 500 Users

  • Professional PAT Testers
  • Electrical Contractors
  • Facilities Managers
  • Operations Managers

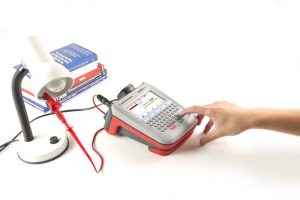

1. Straight Forward PAT Testing with simple data management

Apollo 400 offers a comprehensive suite of fast and accurate electrical safety tests to enable any workplace appliance to be tested, including 3-phase equipment, fixed appliances and RCDs.

The QWERTY keypad enables asset information to be entered quickly and easily, while a large colour display with an intuitive menu sructure makes the Apollo 400 simple to grasp. Lightweight and small in size, with battery or mains power modes, the Apollo 400 is good to go in seconds; allowing more appliances to be tested without downtime for boot-up or a battery re-charge

2. Superb software for total traceability

Apollo 400 has an internal memory capable of storing up to 2000 electrical test records. Its compatibility with Seaward’s PATGuard 3 software means that complete test records are easily managed on a PC.

Transfer data to the PC remotely using the Bluetooth function and a smartphone, or download the results via a USB cable directly to a PC. Once downloaded to PATGuard 3, it is easy to keep track of the history of test and inspections as well as produce reports, certificates and invoices – offering total peace of mind and quicker, easier management of scheduling inspections and tests.

3. Greater efficiency through useful accessories

As with many Seaward PAT testers, the Apollo 400 is compatible with a range of printers and barcode scanners, further speeding up the process of asset recognition, testing and labelling.

4. Accessory Bundles

The Apollo 400 is available to buy with a selection of optional accessory bundles to help you get the most out of your tester.

Specifications

Earth Continuity
Test Current± 200mA
Display Range0.01 Ω – 19.99Ω
Pass ValueUser Defined
Insulation Resistance
Test Voltage500V / 250V DC @ 1mA nominal
Display Range0.01MΩ - 19.99MΩ
Pass ValueUser Defined
IEC Lead Test
Tests PerformedEarth, Insulation Resistance, Live & Neutral Continuity
Protective Conductor Current/Load
Test VoltageSupply voltage, maximum load current 16A
Display Ranges0.01mA – 19.99mA
Pass ValueUser Defined
Touch Current
Test VoltageSupply voltage, maximum load current 16A
Display Ranges0.00mA – 3.5mA
0.00kVA – 4.00kVA
0.00A – 16.00A
Pass ValueUser Defined
Load Power/Current
Test Voltage230V +10%, -15%, maximum load current 16A
Test DurationProgrammable up to a maximum of 255s depending on load, i.e max duration is reduced for higher loads.
Display Range0.00kVA – 4.00kVA
0.00A – 16.00A
Alternative Leakage Current
Test Voltage>25Vac <50Vac
Display Range0.00mA - 19.99mA
Pass ValueUser Defined
RCD Trip Time
Test Voltage230V +10%, -15%
Test Current15mA/ 30mA rms,sinusoidal
Display Range0ms - 2000ms
Test MethodInternal isolation to avoid tripping distribution board RCD
Power Socket Test
Voltage Range207V – 253Vac
Voltage IndicatorsLine potential phase to earth
Line potential phase to neutral
Line potential neutral
General
Memory size2,000 records
Weight1.5kg
Dimensions230mm x 150mm x 100mm
Power SourceMains or rechargable battery pack
Warraney2 years (Subject to registration)
