DL6799 CombiVolt 5

DL6799 CombiVolt 5

DL6799 CombiVolt 5

1000V TrueRMS Voltage, Continuity & Current Tester

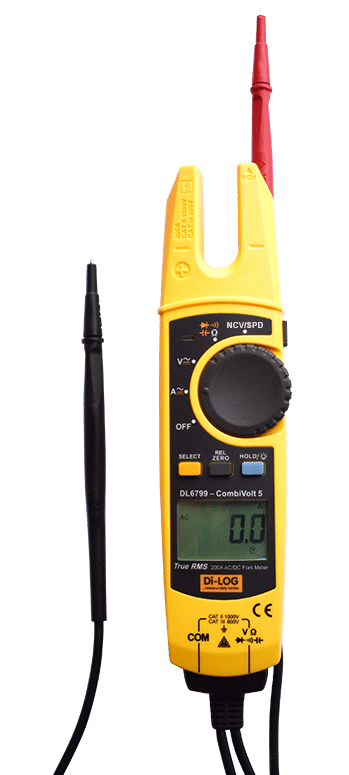

DL6799 CombiVolt™ 5 TrmsVoltage, Continuity & Current Tester

The NEW CombiVolt 5 is a five-in-one tester with a rugged, ergonomically formed housing for perfect handling.  With a range of testing function including TRMS AC/DC voltages , TRMS AC/DC current, Non-Contact & Single Pole Voltage detection and a multitude of other functions the CombiVolt 5 offers complete versatility to the Electrical Engineer.
Fully conformant to BS EN 61010-1, 61010-2-032, CAT II 1000V & CAT III 600V

Features:

    • Meets safety and performance requirements of BS EN 61010-1
    • 750V TRMS AC / 1000V DC voltage measurement
    • Single Pole Voltage Detection
    • Non Contact Voltage Detector
    • Phase rotation test system
    • Single pole phase indication
    • 200A TRMS AC /DC Current measurement
    • 60M Ohm Resistance with Audible Continuity
    • Capacitance
    • GS38 shrouded probe tips
    • Bright LED Flashlight
    • Carry Case







Specifications

AC Voltage TrueRMS0-750V AC
Typical Accuracy+/- 1.2 % + 3 digits
Frequency45 - 400Hz
DC Voltage0 - 1000V DC
Typical Accuracy+/- 0.8 % + 3 digits
Single Pole Indication>100Vrms
Non-contact Voltage Detection>100Vrms Distance <10mm
AC Current200A
Typical Accuracy+/- 2.5 % + 5 digits
Frequency50 - 60Hz
DC Current200A
Typical Accuracy+/- 1.0 % + 2 digits
Continuity0-600Ω Audible <100Ohms
Resistance0.1 - 60MΩ
Typical AccuracyTypical Accuracy
Capacitance60.00nF - 60.00mF
Diode6.000V
Power supply2 x 1.5 V (AA) LR06 batteries
Dimensions210 x 53 x 35 mm
Weight164g (batteries Included)
