ApplianceTest DLPT1

The Complete Appliance Safety Tester

The ApplianceTest DLPT1 is a functional and diverse manual PAT tester. Featuring three operational modes, it is an ideal choice for those looking for an easy to use, electrical safety tester. Simply pushing a button will give you the option of PAT Test mode: Class I and II, IEC Lead test mode or Power Socket mode.

Click to request Demo

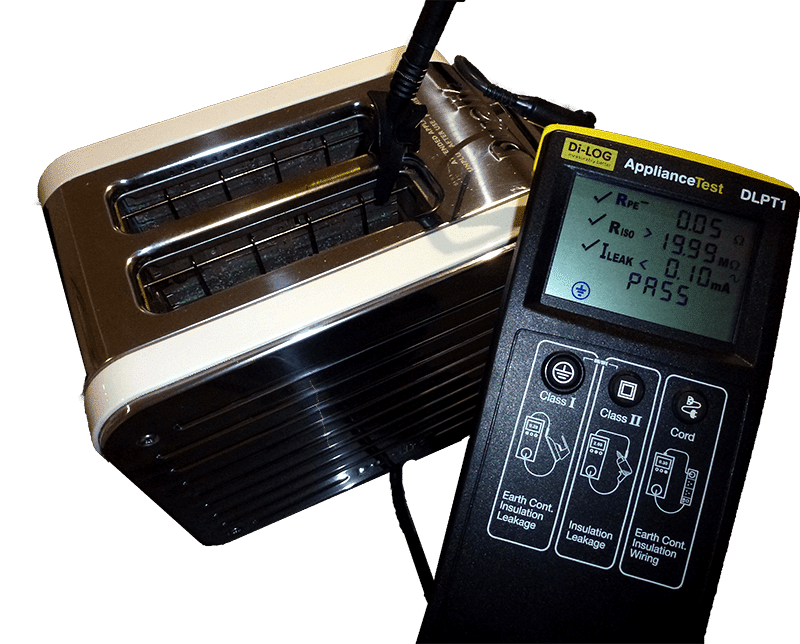

The large LCD display shows the test results values as well as a PASS or FAIL indication. This piece of portable appliance testing equipment is battery powered and lightweight to enable quick and efficient portable appliance testing.

ApplianceTest DLPT1 is one of the fastest, most compact PAT Tester available, providing accurate measurements of Earth Bond, Insulation, Leakage and mains outlet condition.

The simple 3 button operation facilitates quick and accurate PAT testing at the touch of the button.

The ApplianceTest DLPT1 portable appliance tester is ideal for all application where comprehensive and regular testing as required.

The unique design of the ApplianceTest DLPT1 incorporates our “Zap” technology which ensures accurate and repeatable measurement where other testers struggle to provide reliable readings.

An inbuilt socket tester allows the user to ensure that the mains supply has been correctly wired.

Available to download soon is ApplianceTEST Mobile, Di-LOG’s new mobile app makes manually recording data quicker and easier when using the ApplianceTEST DLPTx series of PAT Tester. Scan barcodes, tag image, risk assess site, enter results & send via PDF or export data to CSV and with the optional Bluetooth printer, print your labels.





Features:

  • Checks appliance safety and socket safety in one tester
  • LCD display giving clear pass/fail indication
  • Test class I and II equipment including IT
  • Differential leakage test measurement
  • Extension and IEC lead tests
  • Power socket polarity

Specifications

Earth continuity0.00 Ω - 19.99 Ω (Pass value 0.2 Ω)
Insulation resistance0.20 MΩ - 19.99 MΩ (Pass value 2 MΩ)
Equivalent
Leakage Class I
0.10 mA – 19.99 mA (Pass value 0.75 mA)
Equivalent
Leakage Class II
0.10 mA – 19.99 mA (Pass value 0.25 mA)
Power socket tests230V +10% - 15% AC. L-PE, L-N, N-PE
IEC lead testsEarth test, Insulation and Polarity
Power supply6 x AA batteries
Dimensions260 x 100 x 55 mm
Weight800 g
