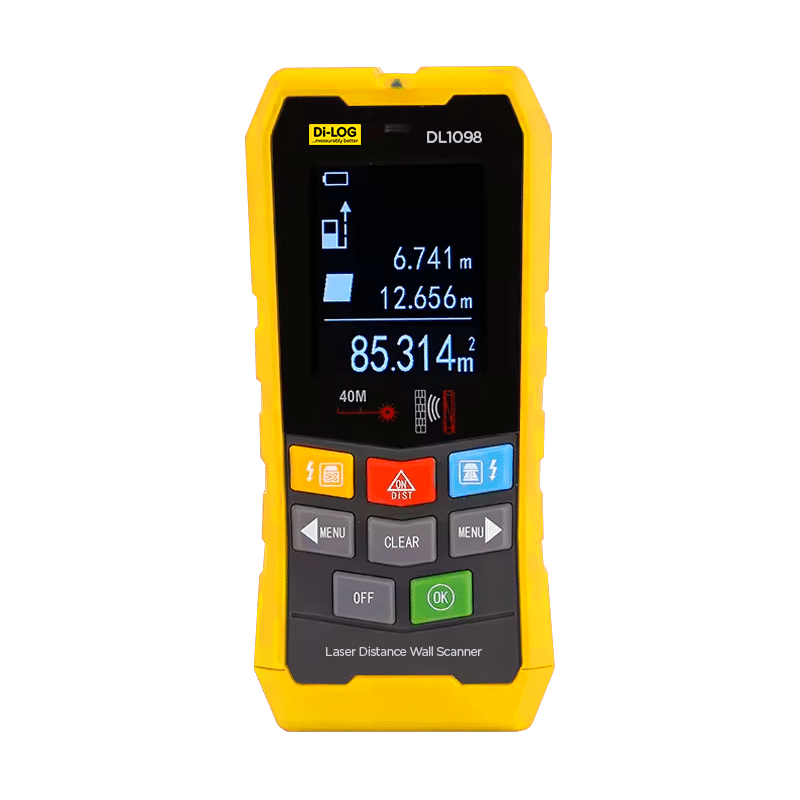

DL1098 5-in-1 Laser Distance Wall Scanner with Colour Screen and Voice Alerts
The Di-LOG DL1098 is a compact and high-accuracy combined 40M Laser Distance Wall Scanner designed to make property maintenance and home improvement projects safer and more efficient. This versatile tool can detect studs, metal, and live wires behind plasterboard walls, saving you time and preventing accidental damage.
Equipped with easy-to-use function keys, an audible voice alarm, and a clear TFT display, the DL1098 offers a user-friendly experience. Simply select the material you want to scan for, and the scanner’s “Auto Cal” system will automatically calibrate itself to the surface. By moving the scanner slowly across the wall, you can accurately identify the object location and when scanning for metal, the depth of the object you’re seeking.
With advanced features such as a 40-meter laser distance measurement, this scanner is ideal for home renovation, construction, and DIY projects. Its user-friendly interface, durable design, and multiple measurement modes make it an essential tool for professionals and enthusiasts alike.
Key Features
Object Detection: Accurately detects ferrous metals up to 100mm, non-ferrous metals up to 80mm, wooden beams up to 38mm, and live AC wires up to 40mm.
Laser Distance Measurement: Measures distances up to 40m with high precision, enhancing functionality for construction tasks.
2.4-Inch Colour Screen: Features a clear and vibrant display for easy viewing of measurements and detection results.
Voice Broadcast: Provides audible feedback for detected objects, improving usability in noisy environments.
Li-ion Battery Powered: Equipped with a rechargeable Li-ion battery for long-lasting performance and convenience.
Auto Power Off: Includes an automatic power-off function to conserve battery life during periods of inactivity.
Multiple Measurement Modes: Offers versatile modes for detecting various materials and measuring distances.
Durable Construction: Built with robust materials to withstand regular use in demanding environments.
Safety Certifications: Fully compliant with CE and UKCA standards, ensuring safe and reliable operation.
Compact and Lightweight Design: Easy to handle and portable, making it suitable for both professional and DIY use.
- 40M Laser Distance Measurement
- Wooden and Metal Stud Detection
- Metal Pipe Detection
- Dynamic TFT display with Audible Voice Indication
- Wooden Stud Detection 20mm to 38mm
- Ferrous Metal Detection to 100mm
- Non-ferrous Metal Detection 80mm
- Voltage Detection 50mm
- Auto Calibration
- Li-ion rechargeable Battery
EAN Barcode: 5060082544811
Di-LOG is a part of the Di-LOG group, for more information click the link to view our group divisions.
Looking for calibration? Why not check out our service and calibration division – Visit: Re-CAL
Specifications
| Display | Colour TFT |
| Voltage indication | 100 – 250V AC |
| Frequency range | 50– 60Hz |
| Wooden/Metal Stud Detection (precision mode) | 20mm |
| Wooden/Metal Stud Detection (depth mode) | 38mm |
| Magnetic Metal Pipe Detection | 100mm |
| Non Magnetic Metal Pipe Detection | 80mm |
| Voltage Detection | 50mm |
| Power supply | 300mAh Lithium |
| Dimensions | 150 x 68 x 32 mm |
| Weight | 153g |
