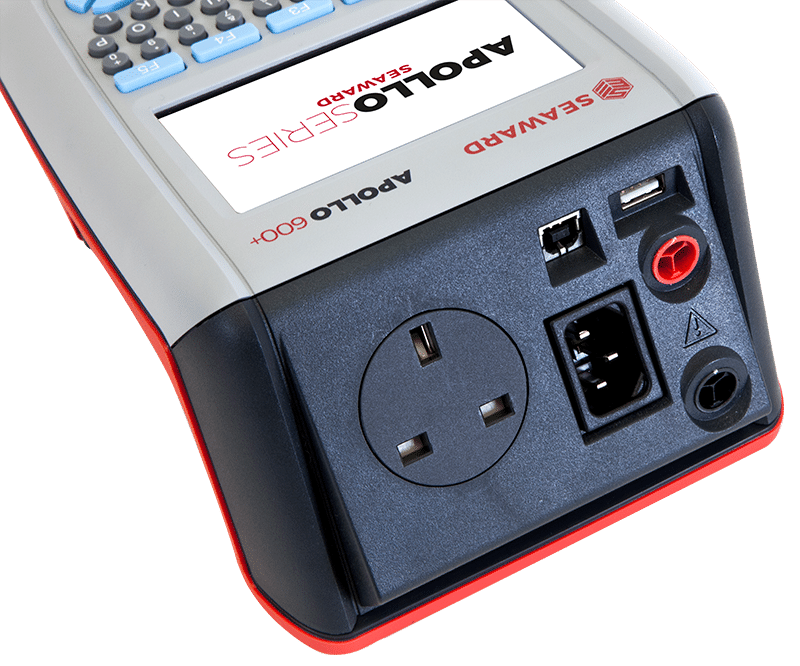

Seaward Apollo 600+ (380A926) PAT Tester
Portable appliance testing and heath & safety management tester
Seaward Apollo 600+ (380A926) PAT Tester
Apollo 600+ Portable appliance testing and heath & safety management tester
 |
PAT Tester – Full suite of advanced electrical safety tests. |
 |
Risk assessment – For any workplace hazard. |
 |
On-board camera – Visual evidence to tag against records. |
 |
Health and Safety forms -Generates reports, certificates and invoices via PATGuard 3. |
With built-in risk assessment tools for any workplace hazard and a variety of testing and inspection reports including portable appliance testing, fire detection and alarms and emergency lighting; Apollo 600+ offers an all-in-one solution to managing a risk-based approach to health and safety in any workplace, reducing the burden and ensuring compliance. The Apollo 600+ is the perfect solution for those looking to upgrade from the PrimeTest 350.
Keep comprehensive client records including test and inspection reports, risk assessments and visual evidence with the help of Seaward’s PATGuard 3 Health and Safety Edition software.
Key Features
- Supreme PAT testing capability
- On-board camera with flash for visual evidence
- Built in risk assessment tools
- USB and Bluetooth data transfer
- High definition colour display
- Point to point testing for fixed appliances
- Store 2,000 images and 50,000 appliance records
- Health and safety test and inspection forms including emergency lighting
- User tests for non-electrical tests and inspections
Apollo 600 Case Studies
Take a look at how the Apollo 600 is helping other companies with PAT testing and preventative maintenance:
Specifications
| Earth Continuity | |
| Test Current | ± 200mA |
| Display Range | 0.01 Ω – 19.99Ω |
| Pass Value | User Defined |
| Insulation Resistance | |
| Test Voltage | 500V / 250V DC @ 1mA nominal |
| Display Range | 0.01MΩ - 19.99MΩ |
| Pass Value | User Defined |
| IEC Lead Test | |
| Tests Performed | Earth, Insulation Resistance, Live & Neutral Continuity |
| Protective Conductor Current/Load | |
| Test Voltage | Supply voltage, maximum load current 16A |
| Display Ranges | 0.01mA – 19.99mA |
| Pass Value | User Defined |
| Touch Current | |
| Test Voltage | Supply voltage, maximum load current 16A |
| Display Ranges | 0.00mA – 3.5mA 0.00kVA – 4.00kVA 0.00A – 16.00A |
| Pass Value | User Defined |
| Load Power/Current | |
| Test Voltage | 230V +10%, -15%, maximum load current 16A |
| Test Duration | Programmable up to a maximum of 255s depending on load, i.e max duration is reduced for higher loads. |
| Display Range | 0.00kVA – 4.00kVA 0.00A – 16.00A |
| Alternative Leakage Current | |
| Test Voltage | >25Vac <50Vac |
| Display Range | 0.00mA - 19.99mA |
| Pass Value | User Defined |
| RCD Trip Time | |
| Test Voltage | 230V +10%, -15% |
| Test Current | 15mA/ 30mA rms,sinusoidal |
| Display Range | 0ms - 2000ms |
| Test Method | Internal isolation to avoid tripping distribution board RCD |
| Power Socket Test | |
| Voltage Range | 207V – 253Vac |
| Voltage Indicators | Line potential phase to earth Line potential phase to neutral Line potential neutral |
| General | |
| Memory size | 50,000 records & 2000 photo's |
| Weight | 1.5kg |
| Dimensions | 230mm x 150mm x 100mm |
| Power Source | Mains or rechargable battery pack |
| Warraney | 2 years (Subject to registration) |
