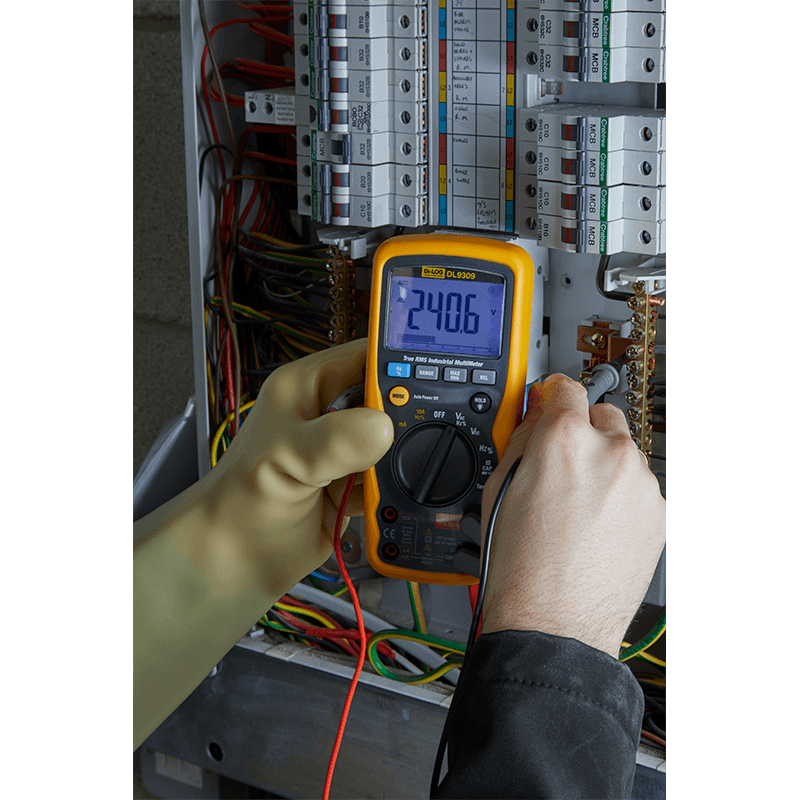

DL9309 True RMS Auto Ranging Multimeter

This is the top of the range multimeter with a 6000 count high visibility back lit LCD display. A high precision multimeter offering accuracy, safety and reliability. The DL9309 has True RMS voltage and current readings with max/min and peak hold function making this the ideal multimeter for electrical engineers.

Features:

  • 61 segment analogue bar graph
  • Full overload protection on all ranges
  • Max/Min, peak hold recording mode
  • Temperature reading in °C and °F
  • Wide Capacitance measurement range
  • Back lit LCD
  • Range selection for precise readings.

Specifications

MeasurementRangeBasic Accuracy
AC voltage1.0 mV – 1000 V1.0 % +/- 3 digits
DC voltage0.1 mV – 1000 V0.09 % +/- 2 digits
AC current0.1 µA – 10 A1.5 % +/- 3 digits
DC current0.1 µA – 10 A1.0 % +/- 3 digits
Resistance0.1 Ω – 60 MΩ0.3 % +/- 4 digits
Capacitance0.01 nF – 1000 µF3.5 % +/- 4 digits
Frequency0.001 Hz – 40 MHz0.1 % +/- 1 digits
Temperature-45°C to 750°C3.5 % +/- 4 digits
Diode test0.9 mA typical 2.8 V DC
Power supply1 x 9 V PP3 Alkaline battery (supplied)
Dimensions182 x 82 x 55 mm
Weight360 g
