ALVA EV - Installation Multifunction Tester Kit

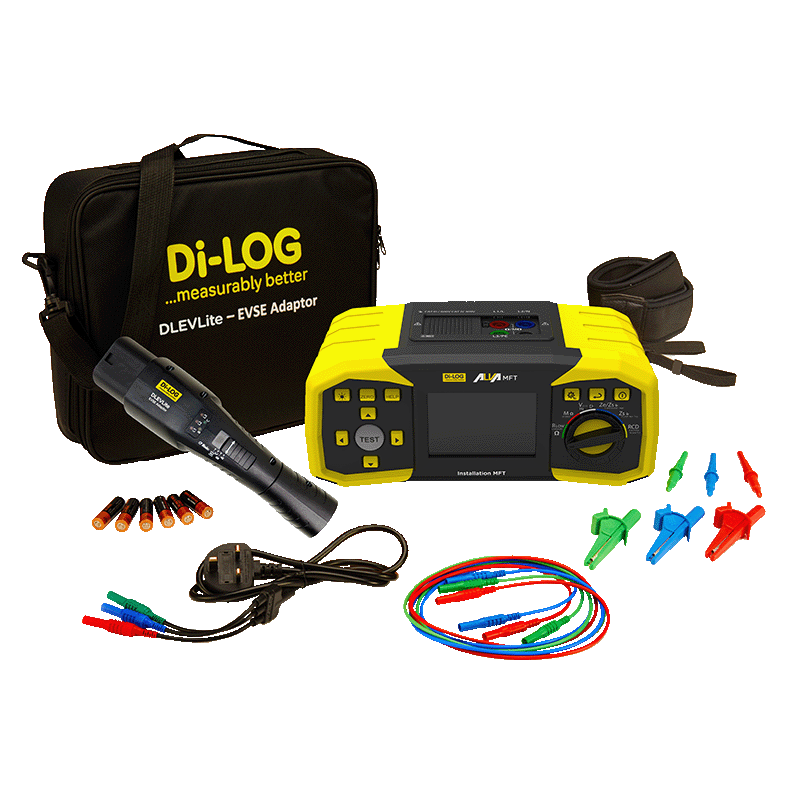

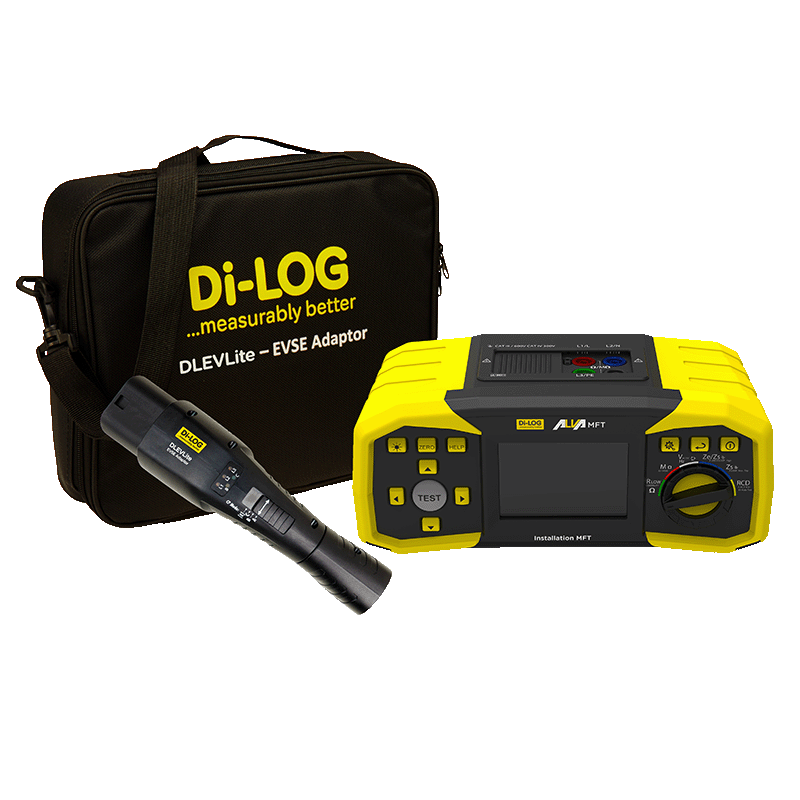

Di-LOG ALVA MFT EV Kit – Complete EV Testing Solution
The Di-LOG ALVA EV Installation Multifunction Tester Kit combines the trusted accuracy of the ALVA Multifunction Tester (MFT) with the targeted EV capabilities of the DLEVLite Type 1 EVSE Adaptor, delivering a compact, high-performance solution for electric vehicle charge point testing. Ideal for contractors and EV specialists, this kit enables fast, reliable, and fully compliant testing of Mode 3 EV installations in line with 18th Edition requirements.

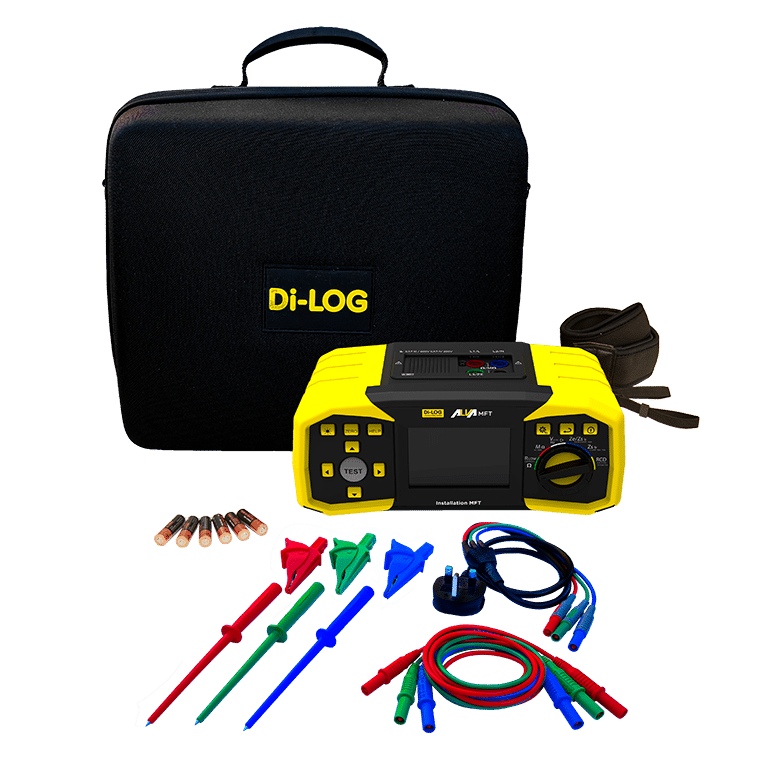

At the heart of the kit is the Di-LOG ALVA MFT, a next-generation multifunction tester fully compliant with BS EN 61557. It features a high-resolution full-colour TFT screen, user-interactive pass/fail limit setting, and testing support for RCD types AC, A, B, B+, EV and F. With automated Continuity & Earth Loop Auto Start, a dual display, and intelligent 2/3 wire loop detection, it simplifies daily testing routines with greater speed and precision.
The MFT also includes a variable RDC test feature and 6mA RDC-PD/MD testing, enabling effective verification of EVSE charger safety. Inbuilt fuse tables provide immediate access to the maximum permitted Zs Loop values—essential for ensuring safe Earth Loop Impedance measurements in real-world installations.
Di-LOG ALVA EV Installation Multifunction Tester Kit Key Features
- Full-Colour TFT Display: Provides a high-contrast screen with interactive pass/fail settings for enhanced user experience.
- Comprehensive RCD Testing: Supports AC, A, B, B+, EV, and F types, ensuring compatibility with a wide range of installations, including EV charge points.
- Automated Continuity & Earth Loop Auto Start: Simplifies testing with a secondary display for recorded results, improving efficiency
- Advanced Loop Testing with Intelligent Detection & Xpert Loop Technology: The ALVA MFT Pro EV features Intelligent 2/3 Wire High-Current Loop Detection, which automatically identifies whether a 2-wire or 3-wire Loop/PSCC measurement is being conducted, eliminating manual selection errors. Combined with RCD-LOC+ Dynamic Non-Trip Loop Testing, this latest Xpert Loop Technology delivers high-accuracy low-current Earth Loop measurements with an adjustable test current feature, optimising test precision based on your RCD current. This ensures reliable loop impedance testing while maintaining maximum safety and accuracy in all environments.
- Insulation Test with Bargraph: with selectable voltages of 50, 100V, 250V, 500V & 1000V with adjustable pass/fail values
- 6mA EVSE Testing: Simple EV Charger Safety Verification with a 6mA RDC-PD/MD Testing as standard
- Integrated DLEVLite Charge Point Adaptor: Enables full functional testing of Mode 3 EV charging stations, ensuring charge point performance and safety.
- Control Pilot & Protective Earth Testing: DLEVLite Verifies Control Pilot (CP) status, detects CP Error “E” for added safety in EV charger installations.
- Rechargeable Capability (Optional Kit Required): The ALVA MFT includes an inbuilt charging facility when used with the optional NiMH battery and charge lead kit, allowing convenient charging and longer operation without regular battery changes.
- On-screen Help: a visual aid to assist test lead configuration and instruction
Click here to register your interest
Paired with the Di-LOG DLEVLite adaptor, the ALVA MFT EV kit allows electricians to simulate a vehicle connection at Type 1 EVSE sockets, verifying Control Pilot (CP) signal integrity, Protective Earth (PE) continuity, and simulating fault conditions such as CP Error E or PE loss. Lightweight and easy to deploy, the adaptor adds flexibility and functionality to on-site testing, making it a must-have for EV charger commissioning and troubleshooting.
Engineered for speed, simplicity, and full regulatory compliance, the ALVA MFT EV kit delivers powerful all-in-one functionality for modern electrical professionals.
Upgrade your testing experience with the Di-LOG ALVA MFT EV—precision, reliability, and compliance in one powerful device.
Specifications
ALVA MFT Specifications |
||
|---|---|---|
Measurement Range | Resolution | Basic Accuracy |
Voltage & Frequency |
||
| AC Voltage TRMS 0V - 550V | 1V | ±2% ± 2 dgts |
| DC Voltage 0V - 550V | 1V | ±2% ± 2 dgts |
| Frequency 10 - 499Hz | 0.1Hz | ±0.2% ± 1 dgts |
Phase Rotation |
||
0V - 550VMeasurement range BS EN 61557-7 | Right:1-2-3 ; Left: 3-2-1 | |
Continuity |
||
| Low R (200mA) | 0.01Ω - 19.99Ω 20.1Ω - 99.9Ω 100Ω - 1999Ω | ±3% ± 3 dgts ±5% ± 5 dgts ±5% ± 5 dgts |
Insulation |
||
50V, 100V & 250V(50kΩ-80MΩ @ 50V | 100kΩ-199.9MΩ @ 100V & 250V) | <0.01MΩ - 19.999MΩ 19.99MΩ - 99.99MΩ 20.0MΩ - >199.9MΩ | ±5% ± 3 dgts ±5% ± 3 dgts ±5% ± 5 dgts |
500V & 1000V(500kΩ-199.9MΩ @ 500 & 1000V) | <0.01MΩ - 19.999MΩ 19.99MΩ - 99.99MΩ 20.0MΩ - >199.9MΩ 200MΩ - >999MΩ | ±5% ± 3 dgts ±5% ± 3 dgts ±5% ± 5 dgts ±10% |
Line Impedance (L-L | L-N) |
||
0.20Ω - 9999ΩMeasurement range BS EN 61557-3 is 0.25Ω - 1999Ω | 0.01Ω - 19.99Ω 20.0Ω - 99.9Ω 100Ω - 9999Ω | ±5% ± 5 dgts |
Perspective Short Circuit Current (PSC) |
||
| 0.00A - 19.99A 20.0A - 99.9A 100A - 999A 1.00kA - 9.99kA 10.0kA - 100.0kA | 0.01A 0.1A 1A 0.01kA 0.1kA | Calculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts |
Earth Fault Loop Impedance (Z-loop L-PE High Current) |
||
0.20Ω - 9999ΩMeasurement range BS EN 61557-3 is 0.25Ω - 1999Ω | 0.01Ω - 19.99Ω 20.0Ω - 99.9Ω 100Ω - 9999Ω | ±5% ± 5 dgts |
Perspective Earth Fault Current (PFC - High Current) |
||
| 0.00A - 19.99A 20.0A - 99.9A 100A - 999A 1.00kA - 9.99kA 10.0kA - 100.0kA | 0.01A 0.1A 1A 0.01kA 0.1kA | Calculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts |
Earth Fault Loop Impedance (Z-Loop (Zs) Non-Trip) |
||
| 0.40Ω - 19.99Ω 20.0Ω - 9999Ω Measurement range BS EN 61557 is 0.75Ω - 1999Ω | 0.01Ω - 19.99Ω 20.0Ω - 99.9Ω 100Ω - 9999Ω | ±5% ± 10 dgts ±10% |
Perspective Earth Fault Current (PFC-Non-Trip) |
||
| 0.00A - 19.99A 20.0A - 99.9A 100A - 999A 1.00kA - 9.99kA 10.0kA - 100.0kA | 0.01A 0.1A 1A 0.01kA 0.1kA | Calculated value taking into account the Earth Loop Accuracy of ±5% ± 5 dgts |
RCD Tripping Time |
||
0.0 - 500.0ms(Measurement range BS EN 61557-6) | 0.1ms | ±3ms |
| Test Current - ½ x I∆n | 1 x I∆n | 2x I∆n | 5 x I∆n | ||
| RCD Types- AC | A | B | B+ | EV | F | S (Selective - Time Delayed) | ||
RCD Tripping Current |
||
0.0 - 500.0ms(Measurement range BS EN 61557-6) | 0.1ms | ±3ms |
| 0.2 x IΔn - 1.1 IΔn (AC type) 0.2 x IΔn - 1.5 IΔn (A type, IΔn ≧30mA ) 0.2 x IΔn - 2.2 IΔn (A type, IΔn ≧10mA ) 0.2 x IΔn - 2.2 IΔn (B type) | 0.05 x IΔn | ±0.1 x IΔn |
| Nominal RCD Currents- 6mA | 10mA | 30mA | 100mA | 300mA | 500mA | ||
Contact Voltage |
||
| 3.0V - 9.9V 10.0V - 99.9V | 0.1V | -0/+10% ±10 dgts |
General Information |
||
| EN61010 Overvoltage Safety Rating | CAT III 600V | CAT IV 300V |
| Display | 480 x 320 TFT | LCD Screen |
| Power supply | 6 x AA Alkaline batteries (included) | |
| Recharge Option | ALVA Recharge Pack A available | |
| Dimensions | 250 x 107 x 135 mm | |
| Weight | 1300g (Excluding batteries) | |
