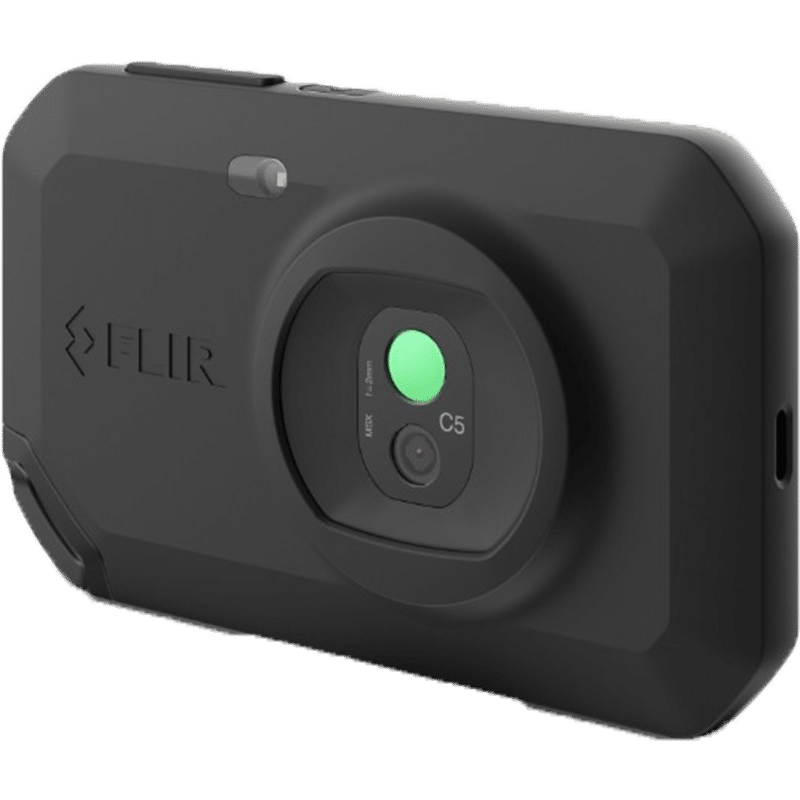

FLIR C5 Thermal Imaging Camera

FLIR C5 Thermal Imaging Camera

FLIR C5 Thermal Imaging Camera

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Black Friday Event ORDER NOW & Information Request

FIND AND TROUBLESHOOT

Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 x 120 true thermal imaging, and 1-Touch Level Span

DOCUMENT AND SHARE

Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers

RUGGED, RELIABLE, COMPACT

Take the pocket-portable C5 with you to every job – it’s IP54 rated for protection against water and dust and designed to withstand a 2 m drop

Specifications

OverviewFLIR C5
IR Sensor160 x 120 (19,200 pixels)
Thermal Sensitivity/NETD < 0.10°C
Field of View (FOV)54°x 42°
Minimum Focus DistanceThermal: 0.11 m (3.94 in) MSX®: 0.3 m (11.8 in)
Image Frequency8.7 Hz
FocusFocus free
Spectral Range8 - 14 µm
Digital Camera5 Mega pixel
Digital Camera FocusFixed focus
Image Presentaton
Image Adjustment• Automatic level and span
• Manual level and span
• 1-Touch level and span
Image Modes• Thermal,
• Visual
• MSX®
• Picture-in-Picture
Image GalleryYes
MSX®Adds visual details to full resolution thermal image
Colour Palettes• Iron
• Rainbow
• Rainbow HC
• Gray
• Arctic
• Lava
Auto OrientationYes
Touch ScreenYes, capacitive
Measurement & Analysis
Storage MediaInternal memory, at least 5000 sets of images
Image File FormatStandard JPEG with 14-bit measurement data included
Communication and Connectivity
Communication InterfacesWi-Fi, USB 2.0, Type-C connector
Wi-FiPeer-to-peer (ad hoc) or infrastructure (network)
USB 2.0USB Micro-C connector type: data transfer to and from PC
Additional Information
Battery TypeRechargeable built in Li-ion battery
Battery Operating Time4 hours
Charging SystemCharged inside camera
Charging Time2 hours
External Power OperationAC adapter, 90-260 VAC input - 5 V output to camera
Operating Temperature Range–10°C to 50°C (14°F to 122°F)
Storage Temperature Range–40°C to 70°C (-40°F to 158°F)
Weight0.19 kg (0.42 lbs)
Dimensions138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
System Includes
Box ContentsInfrared camera, lanyard, pouch, power supply/charger, USB cable, printed documentation
