DL107 1000V Non Contact Voltage Detector
24-1000V CAT IV with built in LED torch
DL107 1000V Non Contact Voltage Detector
24-1000V CAT IV Non contact Voltage Indicator with LED Torch
The all new Non Contact Voltage Detectors from Di-LOG offer advanced features enabling the detector to be utilised for many applications across the maintenance, plumbing and electrical industry. With a CAT IV 1000V safety rating, the DL107 gives the user a high level of safety, making it an essential tool for everyday use.
The DL107 offers a Non contact- optical and acoustic indication of AC voltages between 24-1000V, boasting two selectable levels of detection, “High Voltage Mode” suitable for detecting domestic electrical supply and three-phase systems and a “Low Voltage Mode” designed for testing low-voltage motors (<90V), audio systems, arc welding equipment, cables with a thick layer of insulation and other weak electromagnetic AC signals.
Features:
- Contact-free audible and visual indication of AC voltages between 24 and 1000 V AC
- Clear, omni-directional flashing LED with audible alarm
- High and Low voltage mode for general or weak electromagnetic field
- Built in LED flash light
- Quick and accurate detection of cable breaks

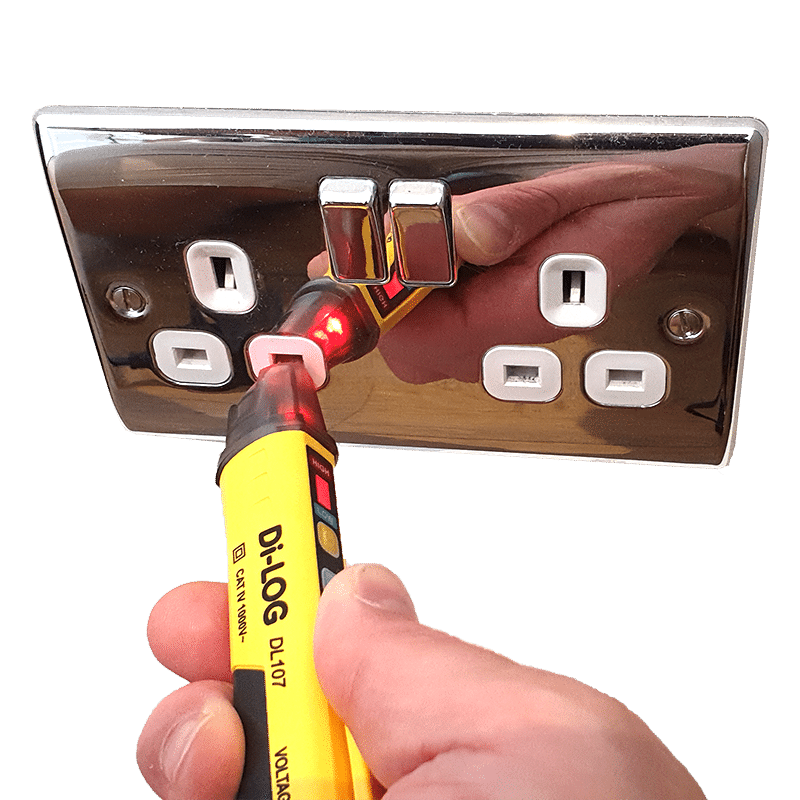

- Phase detection in sockets
- Auto power off with electronic switch to avoid nuisance buzzing and extends battery life
- CAT IV 1000V Safety Rating
- Supplied complete with 1.5 V AAA batteries

“Low Voltage Mode” for detecting weaker magnetic field and voltages down to 24V, ideal for tracing power on cables with thick insulation or from a greater distance

Specifications
| DL107 Voltage Detector | |
|---|---|
| Indication | LED and Audible Alarm |
| Voltage range "High" | 90 – 1000 V AC |
| Voltage range "Low" | 24 - 1000V AC |
| Operation Mode | Automatic Indication |
| LED flashlight | ✔ |
| Auto Power Off | Approx 5 Minutes |
| Low battery indication | <2.4V |
| Drop Tested | 1 Meter |
| Operating temperature | 0° to 40°C |
| Overvoltage category | Cat IV / 1000 V |
| Power supply | 2 x 1.5 V AAA batteries |
| Dimensions | 150 x 18 x 23 mm |
| Weight | 50 g |
